About the Panel Saw
A sliding table panel saw is the first machine in almost every modular furniture line, and the accuracy of every downstream operation depends on it. Our panel saws pair a main blade with an independent scoring blade so both faces of a pre-laminated panel are cut chip-free in a single pass.
The saw handles all types of wood, pre-laminated engineered board, plywood, WPC, PVC and decorative laminates. Blade tilt of 0–45°, a long squaring fence and a precision-ground sliding carriage make mitre work and repeat sizing straightforward for a single operator.
Key features
- Independent scoring blade eliminates chipping on laminated faces
- Blade tilts 0–45° for mitre and bevel cutting
- Precision ground sliding table with roller carriage
- Squaring fence with flip stops for repeat cut lengths
- Multiple main blade speeds to suit board, solid wood and plastics
- Dust extraction ports at blade guard and cabinet base
Technical specifications
| Parameter | S-350 |
|---|---|
| Max. cutting length | 3200 mm |
| Main blade size | ø300 – ø350 × ø30 mm |
| Main blade power | 5.5 kW |
| Main blade speed | 4000 / 5500 rpm |
| Scoring blade size | ø120 × ø20 mm |
| Scoring blade power | 0.75 kW |
| Scoring blade speed | 9000 rpm |
| Blade tilt | 0 – 45° |
| Overall dimensions (L × W × H) | 3430 × 3460 × 865 mm |
| Weight | 1150 kg |
| Parameter | NSE-3200 (Y) |
|---|---|
| Max. squaring width | 3200 mm |
| Sliding table dimensions | 3200 × 420 mm |
| Fixed table dimensions | 1110 × 650 mm |
| Extension table dimensions | 1400 × 640 mm |
| Max. ripping capacity | 1250 mm |
| Max. saw blade diameter | 400 mm / bore 30 mm |
| Max. depth of cut with scoring | 120 mm |
| Max. saw blade speed | 2500 / 3800 / 5000 rpm |
| Scoring blade | ø120 mm, bore 20 mm, 8000 rpm |
| Tilting of blade | 0° – 45° |
| Main saw motor / scoring motor | 7.5 HP / 1.0 HP |
| Weight (approx.) | 1280 kg |

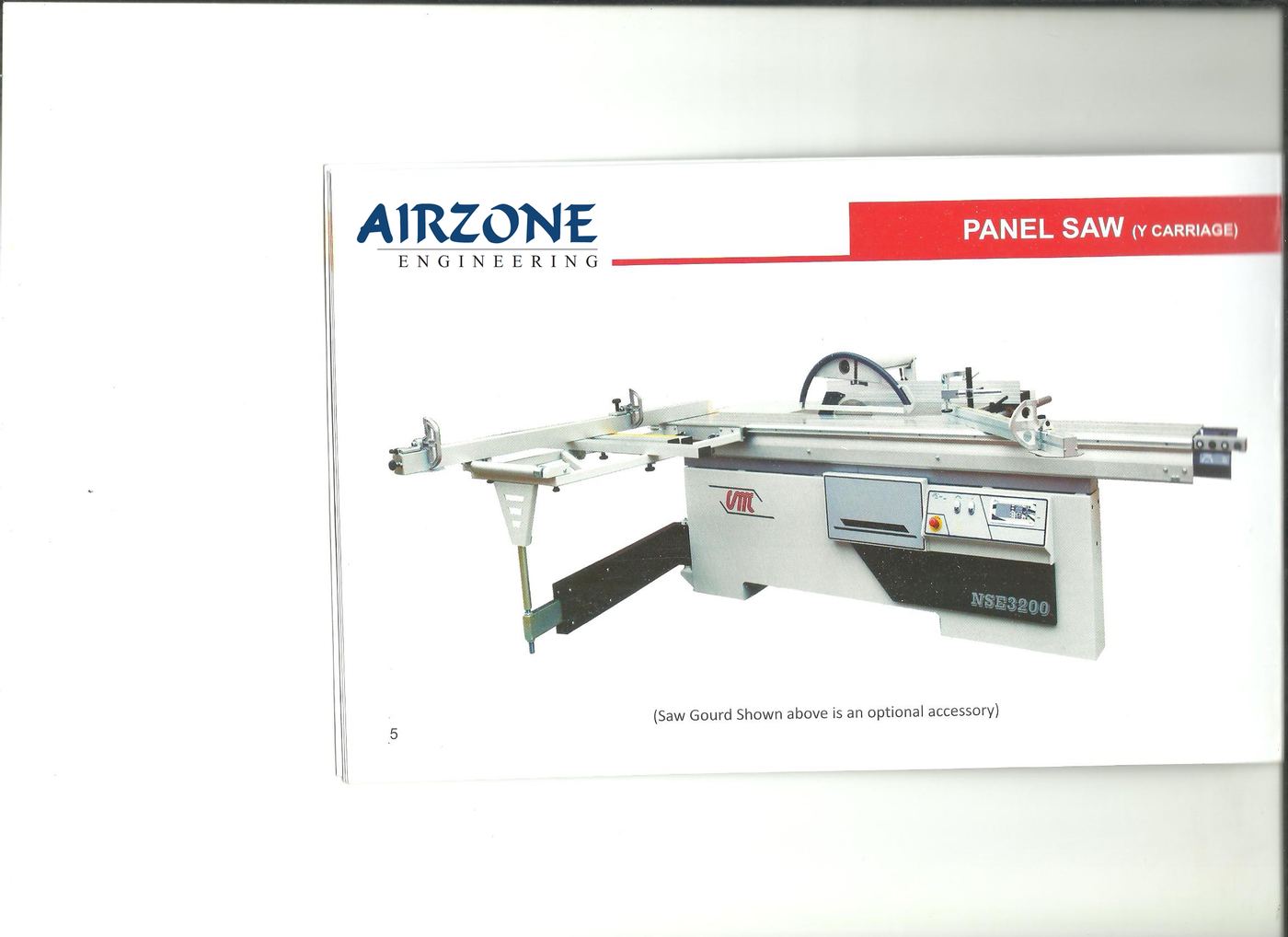

Saw guard shown in catalogue photographs is an optional accessory.
Design and specifications are subject to change without prior notice.
Typical applications
- Cutting cabinet carcass panels
- Sizing pre-laminated boards
- Mitre cuts for profiles
- Solid wood ripping
- Acrylic and PVC sheet cutting
