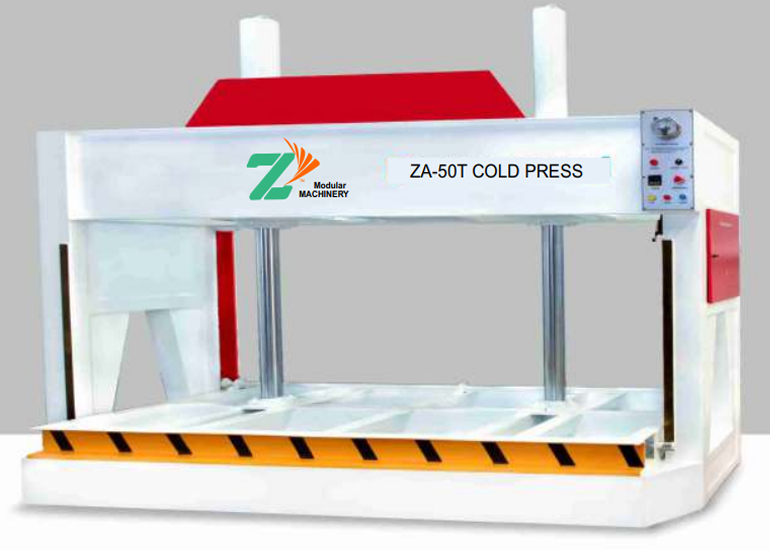

- Models: ZA-50T · MH-3248Ax50 · MH-3248x80
- Pressing
About the Cold Press
A cold press bonds laminate, acrylic, PVC laminate sheet and veneer to wooden panels using pressure alone, with no heating cycle. It is the simplest and most economical way to get a flat, fully bonded panel, and it stays useful in the shop long after other machines are added.
The structure is rigid, made from heavy duty MS channels and sections, so platen pressure stays even from edge to edge across a full 1250 × 2500 mm sheet. Twin oil cylinders and a 5.5 kW hydraulic pump give a fast approach and a controlled dwell.
Key features
- Rigid structure of heavy duty MS channels and sections
- Even platen pressure across full sheet size
- Twin oil cylinders with 5.5 kW hydraulic pump power pack
- Large platen opening for pressing thick or stacked work
- Available in 50 t, 80 t and 100 t worktable pressures

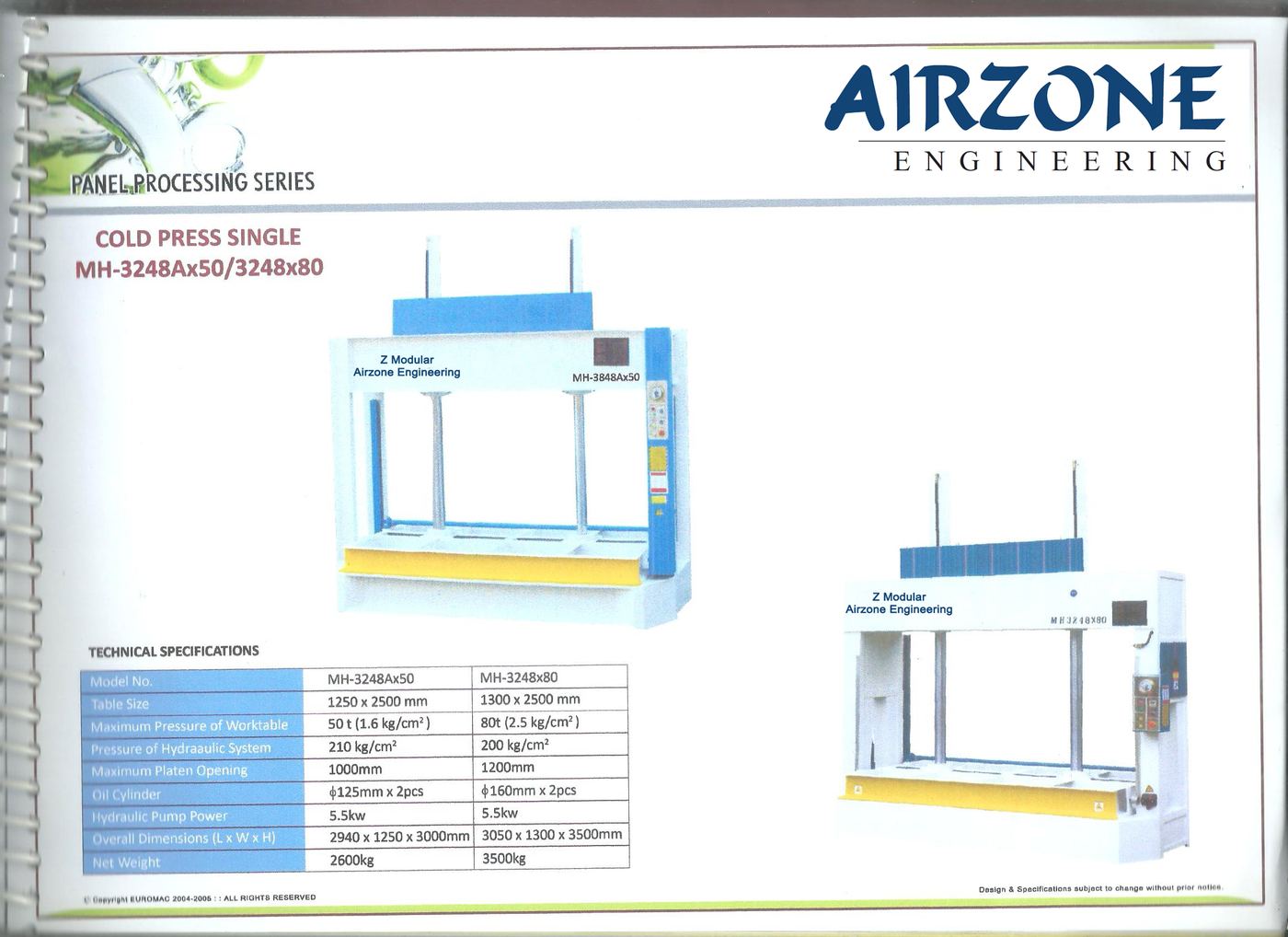

Technical specifications
| Parameter | MH-3248Ax50 | MH-3248x80 |
|---|---|---|
| Table size | 1250 × 2500 mm | 1300 × 2500 mm |
| Max. pressure of worktable | 50 t (1.6 kg/cm²) | 80 t (2.5 kg/cm²) |
| Pressure of hydraulic system | 210 kg/cm² | 200 kg/cm² |
| Max. platen opening | 1000 mm | 1200 mm |
| Oil cylinder | ø125 mm × 2 pcs | ø160 mm × 2 pcs |
| Hydraulic pump power | 5.5 kW | 5.5 kW |
| Overall dimensions (L × W × H) | 2940 × 1250 × 3000 mm | 3050 × 1300 × 3500 mm |
| Net weight | 2600 kg | 3500 kg |
Design and specifications are subject to change without prior notice.
Typical applications
- Laminate on ply and MDF
- Acrylic sheet bonding
- Veneer lay-up
- Flush door pressing
