About the Multi Boring Machine
Modular furniture is built on the 32 mm system, and a multi-boring machine is what makes that system repeatable. Our heavy duty boring machines carry vertical and horizontal boring heads with a fixed 32 mm bit pitch, so a full line of shelf pin, hinge cup and dowel holes is drilled in a single pneumatic stroke.
Vertical heads slide on precise guideways with a digital read-out, and the horizontal group can be revolved through 90° pneumatically for special angle drilling. A widened body and lengthened backer fence make positioning of large panels fast and repeatable.
Key features
- 32 mm bit pitch matched to standard modular hardware
- Vertical heads slide on precision guideways with digital read-out
- Horizontal drilling group revolves 90° under pneumatic control
- Vertical boxes tilt 0–90° on the three row model for angled holes
- Profiled steel frame keeps the head line true under load
- Widened body and long backer fence for quick panel positioning
- Foot pedal operation keeps both hands on the workpiece
Technical specifications

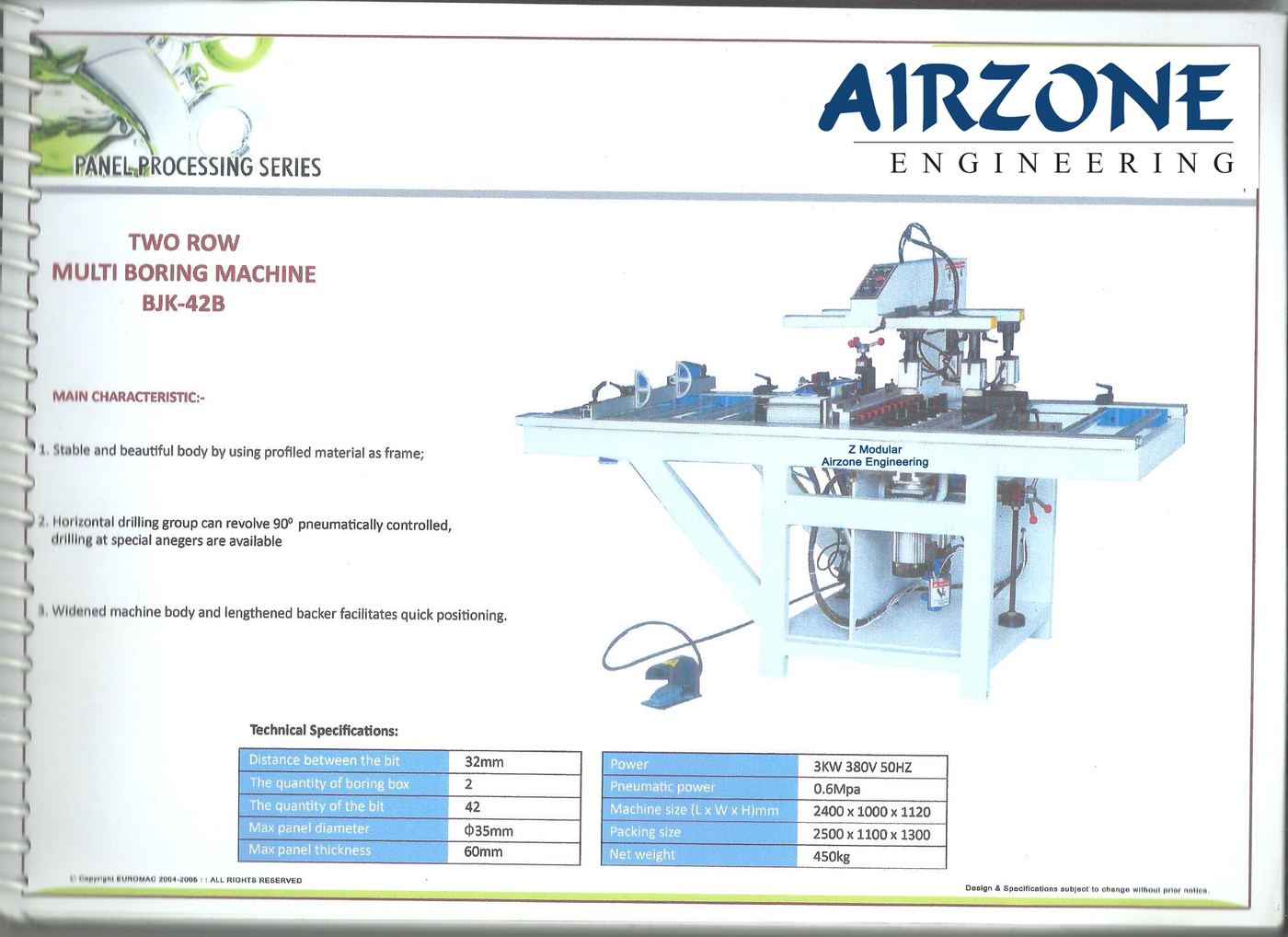

| Parameter | BJK-42B (two row) | BJK-65 (three row) |
|---|---|---|
| Distance between bits | 32 mm | 32 mm |
| Quantity of boring boxes | 2 | 1 horizontal + 2×2 vertical |
| Quantity of bits | 42 | 65 |
| Max. bit diameter | ø35 mm | ø35 mm |
| Max. panel thickness | 60 mm | 60 mm |
| Power | 3 KW / 380 V / 50 Hz | 6 KW / 380 V / 50 Hz |
| Pneumatic pressure | 0.6 MPa | 0.6 – 0.8 MPa |
| Machine size (L × W × H) | 2400 × 1000 × 1120 mm | 2860 × 2800 × 1600 mm |
| Packing size | 2500 × 1100 × 1300 mm | 3000 × 1400 × 1800 mm |
| Net weight | 450 kg | 1200 kg |
Design and specifications are subject to change without prior notice.
Typical applications
- Hinge cup boring
- Shelf pin line drilling
- Dowel holes for carcass joints
- Drawer runner fixing holes
- Angled and special-angle drilling
