- Models: TM-2580A · TM-2580C · LI-RPL-1020
- Pressing
About the Membrane & Roller Press
A positive pressure membrane press is how PVC foil is wrapped onto a routed MDF shutter so that the foil follows every profile and radius without a joint. Vacuum pulls the foil down onto the panel, then positive air pressure above the membrane forces it into the detail while the heated table cures the adhesive.
The roller press is the flat-panel counterpart: a continuous nip roller that presses laminate onto board as it feeds through, at up to 50 metres per minute, for shops running high volumes of plain flat panels.
Key features
- Positive pressure to 0.6 MPa with vacuum to 0.095 MPa
- Working plate up to 2580 × 1270 mm (TM-2580C)
- Top temperature 150 °C with controlled heat-up
- Twin table version keeps loading and pressing running in parallel
- Roller press feeds continuously at 0 – 50 m/min
Technical specifications

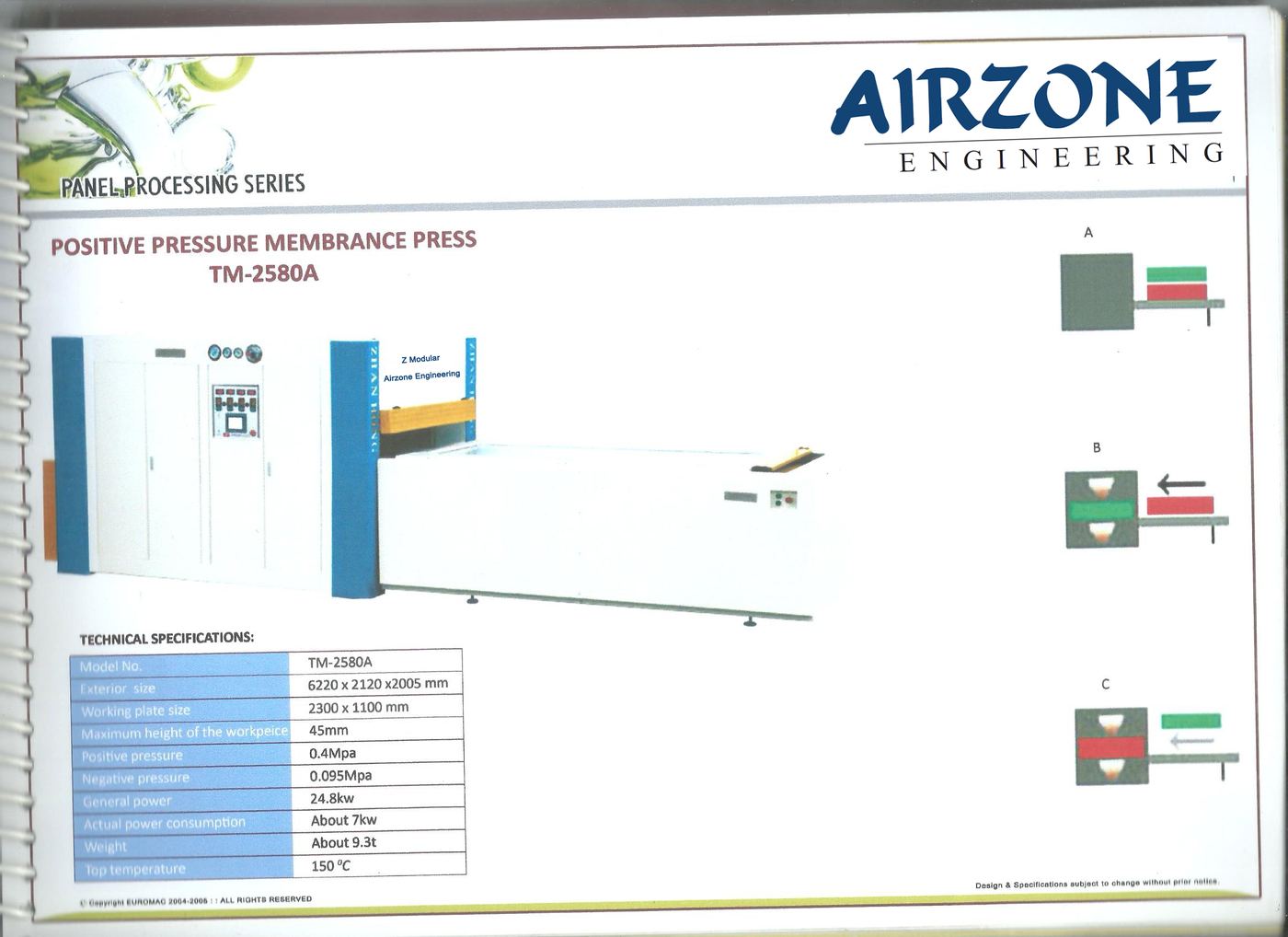

| Parameter | TM-2580A | TM-2580C |
|---|---|---|
| Exterior size | 6220 × 2120 × 2005 mm | 10030 × 2230 × 2150 mm |
| Working plate size | 2300 × 1100 mm | 2580 × 1270 mm |
| Max. height of workpiece | 45 mm | 50 mm |
| Positive pressure | 0.4 MPa | 0.6 MPa |
| Negative pressure | 0.095 MPa | 0.095 MPa |
| General power | 24.8 kW | 37 kW |
| Actual power consumption | about 7 kW | about 11 kW |
| Top temperature | 150 °C | 150 °C |
| Weight | about 9.3 t | about 12.6 t |

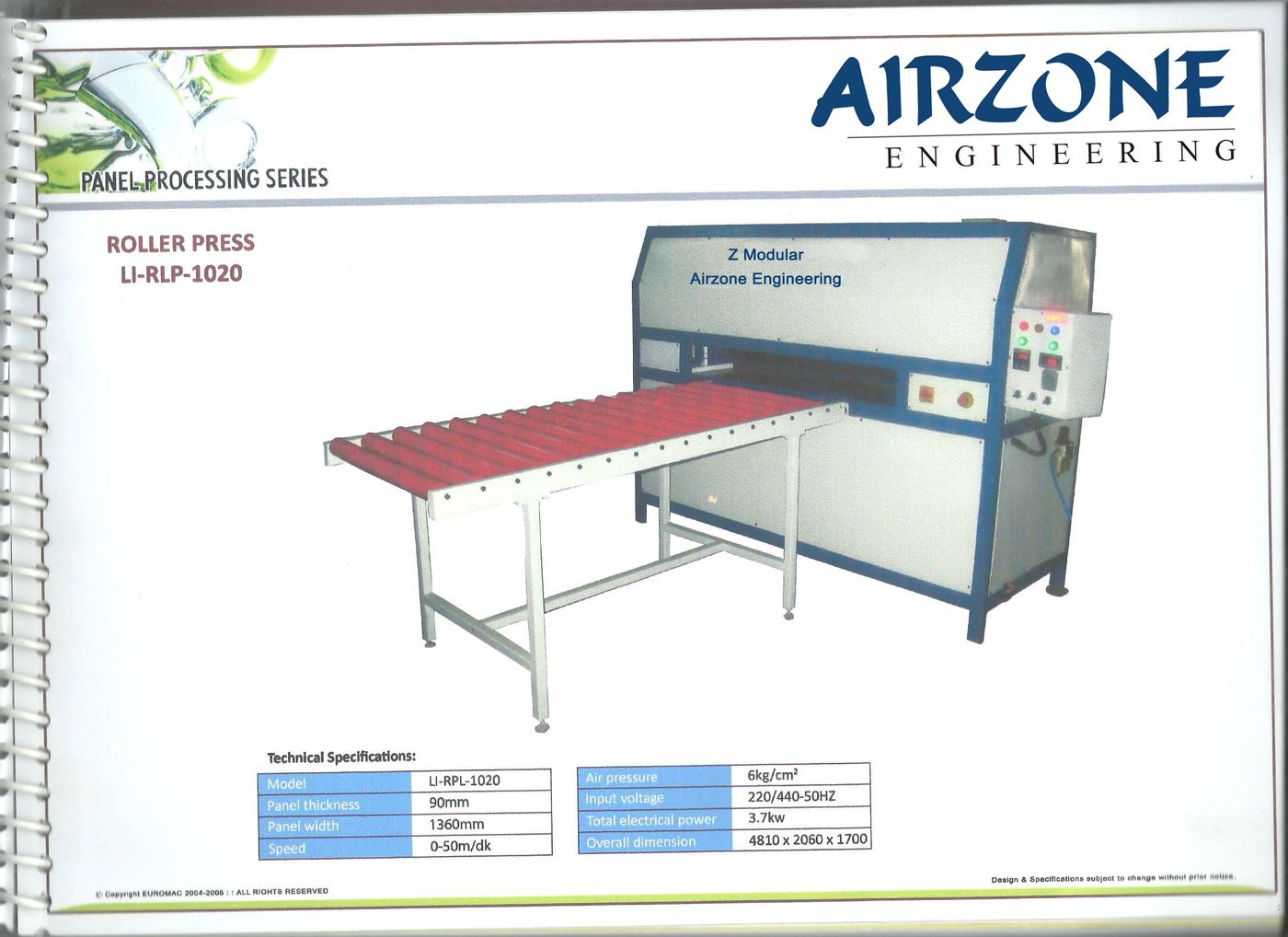

| Parameter | LI-RPL-1020 |
|---|---|
| Panel thickness | 90 mm |
| Panel width | 1360 mm |
| Speed | 0 – 50 m/min |
| Air pressure | 6 kg/cm² |
| Input voltage | 220 / 440 V, 50 Hz |
| Total electrical power | 3.7 kW |
| Overall dimensions | 4810 × 2060 × 1700 mm |
Design and specifications are subject to change without prior notice.
Typical applications
- 3D PVC foil shutters
- Membrane wrapped wardrobe doors
- Flat panel lamination
- Continuous board pressing
